GCE 225S High Voltage Bms 720V 160A 15S BMU for energy storage UPS

Product Categories

high voltage BMS(HV BMS) [225]
Energy Storage BMS [62]
Battery Management System [81]
Integrated BMS [57]
Master Slave BMS [29]
UPS BMS [79]
ESS BMS [28]
BMS Solution [10]
Relay BMS [17]
EV BMS [5]
Stackable high voltage BMS(HV BMS) [11]
Battery Energy Storage System [20]
Battery Power [8]

Hunan GCE Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

GCE 225S High Voltage Bms 720V 160A 15S BMU for energy storage UPS

Brand Name : GCE

Model Number : RBMS07S20-160A720V

Certification : CE UL

Place of Origin : china

MOQ : 2

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000+pcs+1 month

Delivery Time : 8-15 days

Packaging Details : Corrugated Carton,770*560*240mm

Material : Iron

Communication : CAN, RS485

Warranty : 3 years

Product name : Battery Management System

color : black

OEM/ODM : Acceptable

Contact Now

GCE 225S 720V 160A high voltage bms smart BMS lifepo4 bms 15S BMU in series battery management system energy storage UPS

BMS Gonfiguration:

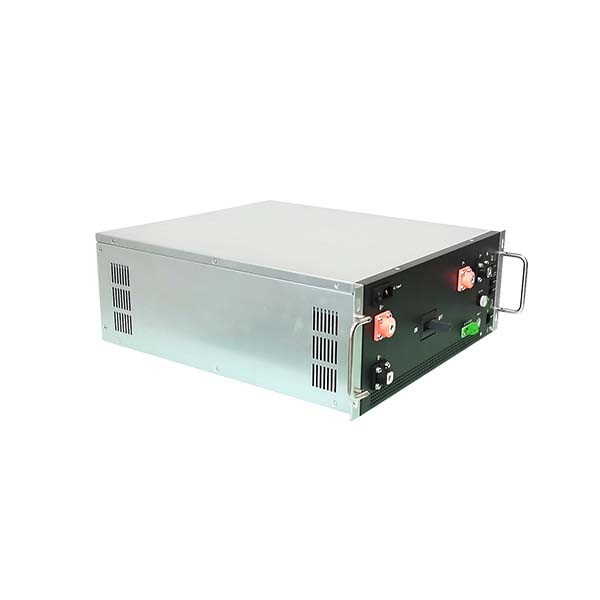

225S 720V 160A High Voltage BMS * 1set

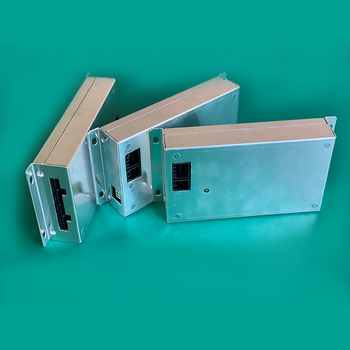

15S BMU * 15 sets

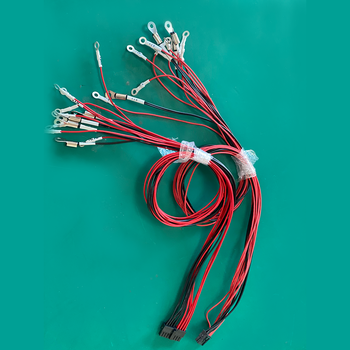

15S wire harness *15 sets
(15S48V battery module, 15 modules in series for 225S 720V 160A system)

GCE 225S High Voltage Bms 720V 160A 15S BMU for energy storage UPS

Specification

Product Name	BMS
Model no.	RBMS07S2-0-160A720V
protecting method	MCCB+Contactor
Rated Current range	-160A~160A
Voltage Range	0V-720V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	4U (440178600)
Way out	Front
Tap center	Support(Optional)
Net weight	23kg

GCE 225S High Voltage Bms 720V 160A 15S BMU for energy storage UPS
